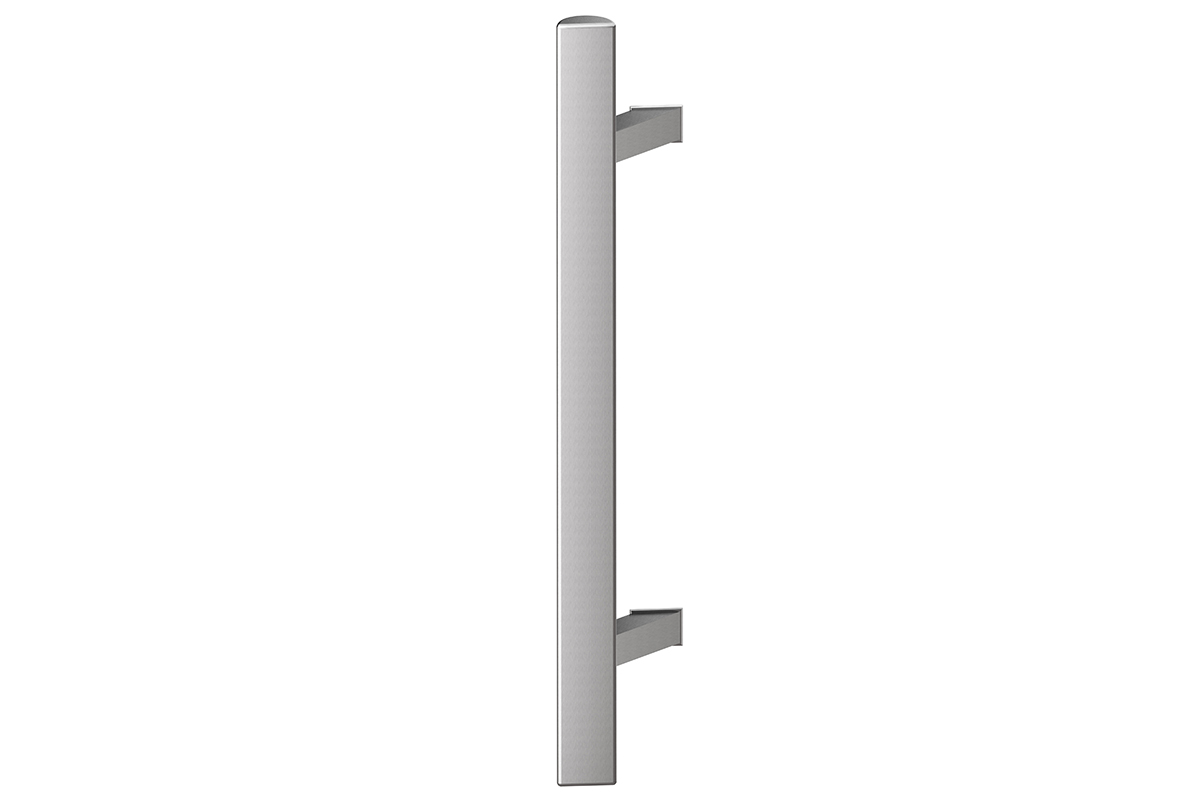

 DP45R PULL HANDLE

The handle is made of 304 or 316 stainless steel. The standard handle is brushed, but it can also be sandblasted (max 1000mm). Stainless steel handles are made of a tube with a diameter Ø45x25.

STAINLESS STEEL type 316 is more resistant to corrosion, it is recommended for use in difficult weather conditions, particularly exposed to chemicals and water, especially salt and chlorinated water.



 DAP45R PULL HANDLE

The handle is made of aluminium with possible tube dimension of Ø45x25.

Aluminium handle can be varnished (in any colours from RAL pallet) or can get anodised finish.



Access Control Systems and backlight in DP45R handles:



DP45R / DAP45R
  Ø45x25
EKEY fingerprint scanner dLine
Fingerprint scanner Idencom CMOS
Fingerprint scanner Idencom Mini-X-App
Fingerprint scanner NAVKOM
Touch sensor
Microsensor
Microswitch
LED in a base
LED in a plug of a handle



✓ - possible assembly

○ - impossible assembly



The table of selection stainless steel and aluminium handles can be found in „TECHNICAL SPECIFICATION” lap.

DQ45R / DAQ45R HANDLE

STEEL 316

DQ45R / DAQ45R HANDLE



DIMENSIONS STAINLESS STEEL 316 ALUMINIUM
LENGTH L HOLE SPACING X Ø45x25 Ø45x25
300 200
400 200
500 300
580 380
600 400
800 600
1000 800
1200 1000
1400 1200
1600 1200
1800 1300
2000 1300
150-1600
1601-2100 max 1300



✓ - standard product

● - product made for individual order

○ - product unavailable
