Description

Material

Technical specifications

TYPE: AXL 3-wings- PCV
MAXIMUM LOAD CAPACITY: 160 kg
POSSIBILITY OF USE IN FIRE DOOR: no
OTHER:

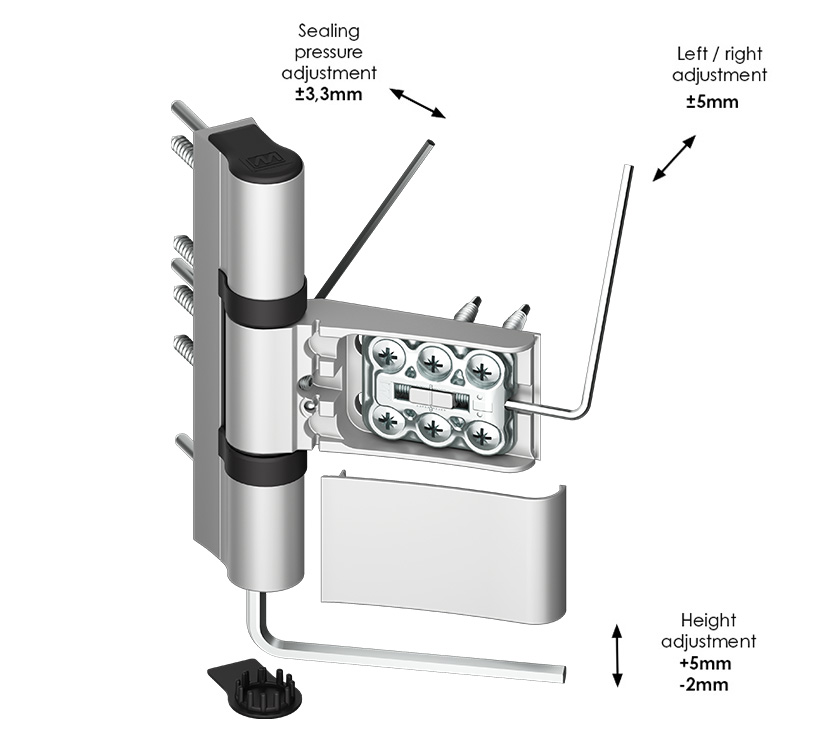

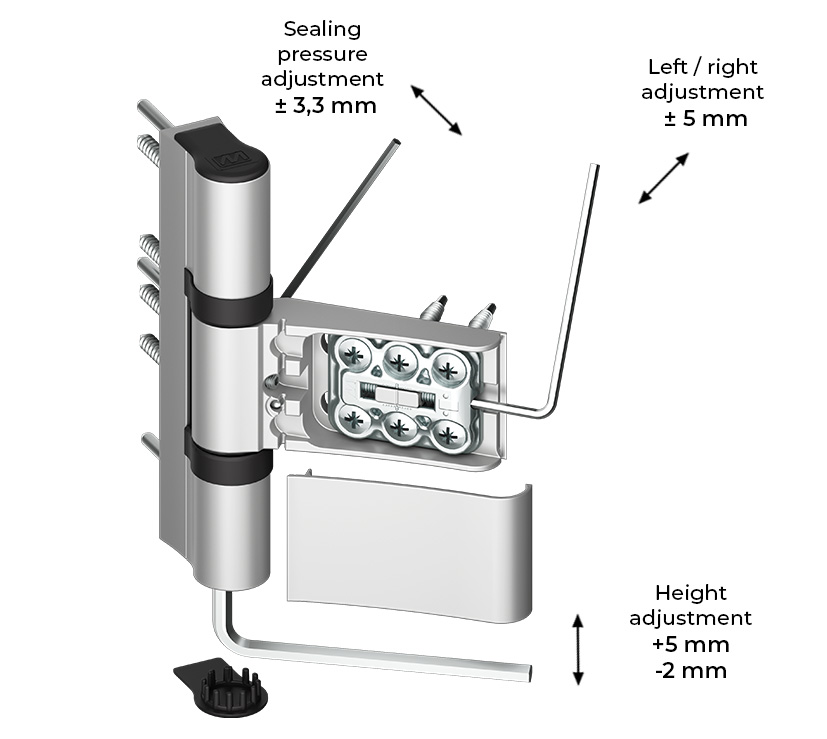

  • independent and smooth adjustment in 3 directions

  • easy and fast assembly

  • certificated product

KOD PRODUKTU:

CHECK CALCULATOR

  • AXL 1710457X - aluminium, upstand 17mm

  • AXL 1910457X - aluminium, upstand 19mm

  • AXL 2210457X - aluminium, upstand 22mm

  • AXL 2410457X - aluminium, upstand 24mm

AXL HINGE CLASSIFICATION EN 1935:2002 + EN 1935:2002/AC:2003
for use in emergency exit doors

4 7 7 0 1 4 1 14

 service classes (1-4)
 durability (3,4,7)
 weight of test door (0-7)
 fire resistance (0,1)
 security (1)
 corrosion resistance (0-4)
 intrusion protection (0,1)
 hinge class (1-14)



AXL 3-WINGS

RAL 7016

AXL 3-WINGS



P - upstand in "0" posiotion:
AXL 17.. - 17mm
AXL 19.. - 19mm
AXL 22.. - 22mm
AXL 24.. - 24mm









Drilling instruction:

drilling Ø5 through the steel hardener

drilling Ø5, depth of drilling - 10mm (usually just through the plastic to hardener)

dimension of drilling distance, settled individually for each system so that the drilling runs completely in the hardener and not behing it. It is also use the settle the templates for drilling the holes in the profile according to suitbale dustances.
