Description

Material

Technical specifications

TYPE: AXS 2-wings - hinge for door PCV
MAXIMUM LOAD CAPACITY: 120 kg
POSSIBILITY OF USE IN FIRE DOOR: no
OTHER:

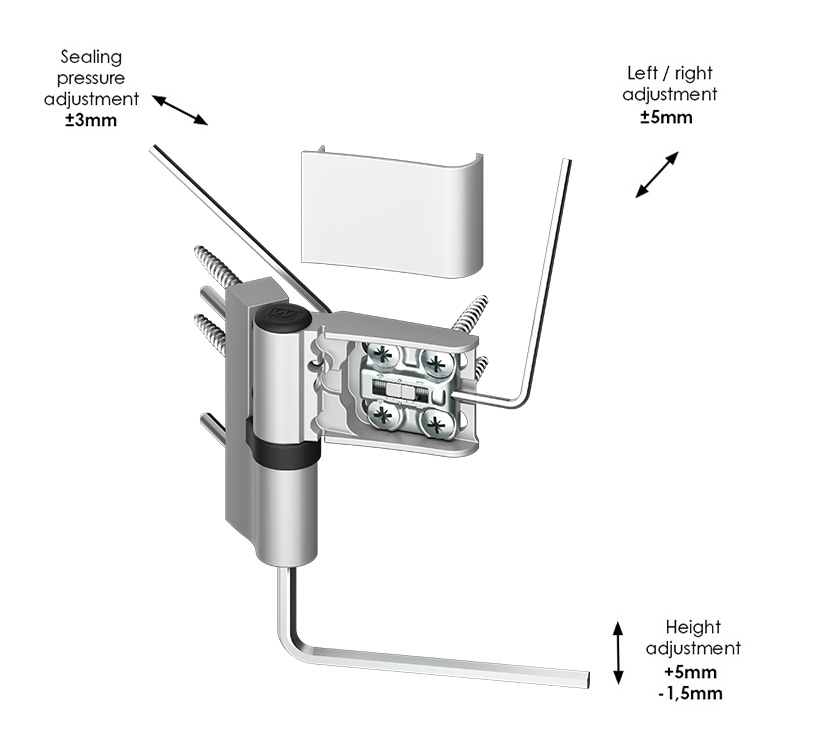

  • independent and smooth adjustment in 3 ground

  • easy and fast assembly

PRODUCT CODE:

  • AXS 1720456X - aluminium, upstand 17mm

  • AXS 1920456X - aluminium, upstand 19mm

  • AXS 2020456X - aluminium, upstand 20mm (upstand of 17mm + 3mm distance plate)

  • AXS 2120456X - aluminium, upstand 21mm

  • AXS 2220456X - aluminium, upstand 22mm (upstand of 19mm + 3mm distance plate)

  • AXS 2420456X - aluminium, upstand 24mm (upstand of 21mm + 3mm distance plate)



CHECK CALCULATOR





AXS 2-WINGS

RAL 7016

AXS 2-WINGS



P - upstand in "0" posiotion:

The upstand of 22mm, 23mm, 24mm is achieved by the 3mm distance plate.

AXS 17.. - 17mm
AXS 19.. - 19mm
AXS 21.. - 21mm





Drilling instruction:

drilling Ø5 through the steel hardener

drilling Ø5, depth of drilling - 10mm (usually just through the plastic to hardener)

dimension of drilling distance, settled individually for each system so that the drilling runs completely in the hardener and not behing it. It is also use the settle the templates for drilling the holes in the profile according to suitbale dustances.
