PIVOT


MAXIMUM LOAD CAPACITY: 500 kg
OTHER:

  • independent and smooth adjustment in 3 directions
  • easy and fast assembly

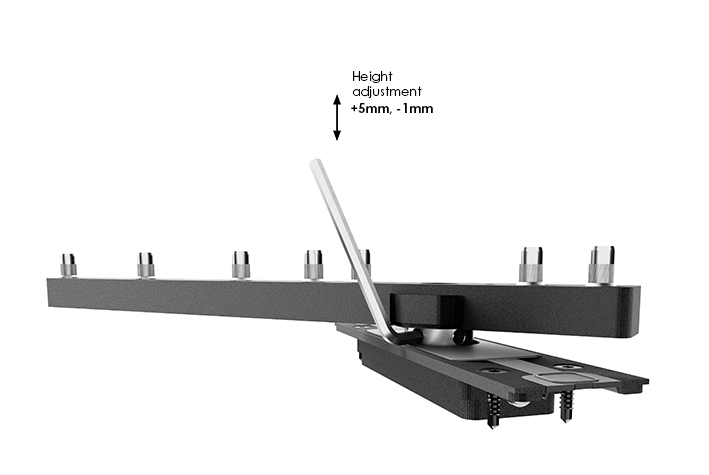

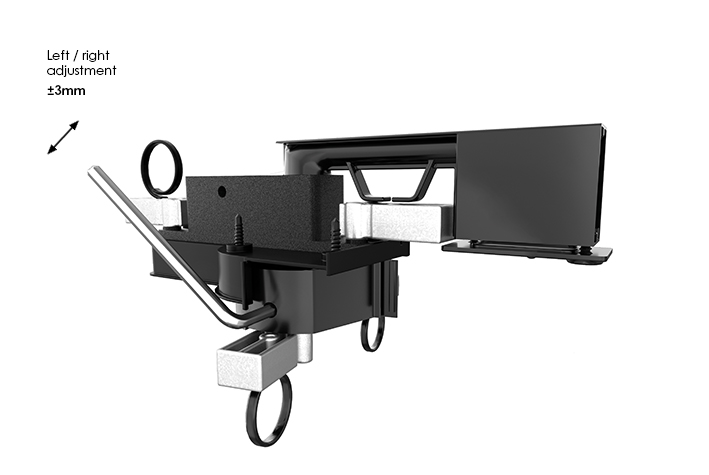

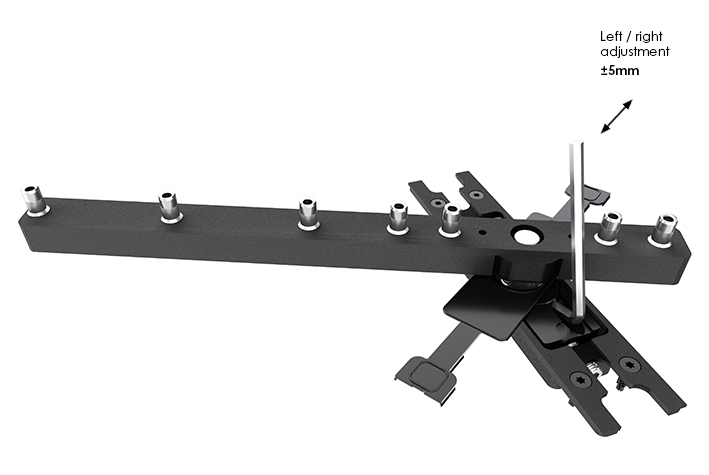

Among the products that undoubtedly are the future of door opening and designing are PIVOT hinges. They allow smooth and independent left/right adjustment, separately on the top hinge (range ± 3 mm) and the bottom hinge (range ± 5 mm), as well as vertically, up +5 mm and down -1 mm. The feature that distinguishes the PIVOT WALA hinge from other hinges is the fact that the adjustment can easily be carried out by one person only, as there is no need to remove the leaf from the frame. From a practical point of view, independent adjustments provide greater opportunities to correct any minor errors that may occur during the door installation process. This, in turn, speeds up the process of installing the door by fitting companies, allowing for more precise adjustments, while at the same time contributing to the final opening quality and smoothness. Thanks to PIVOT hinges, even the most massive doors open easily and smoothly, giving a high level of comfort.

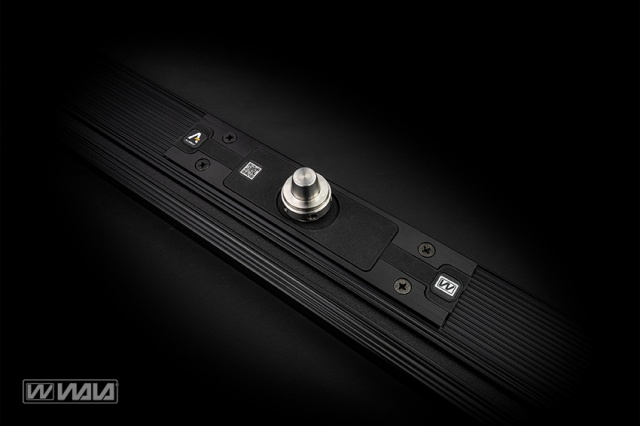

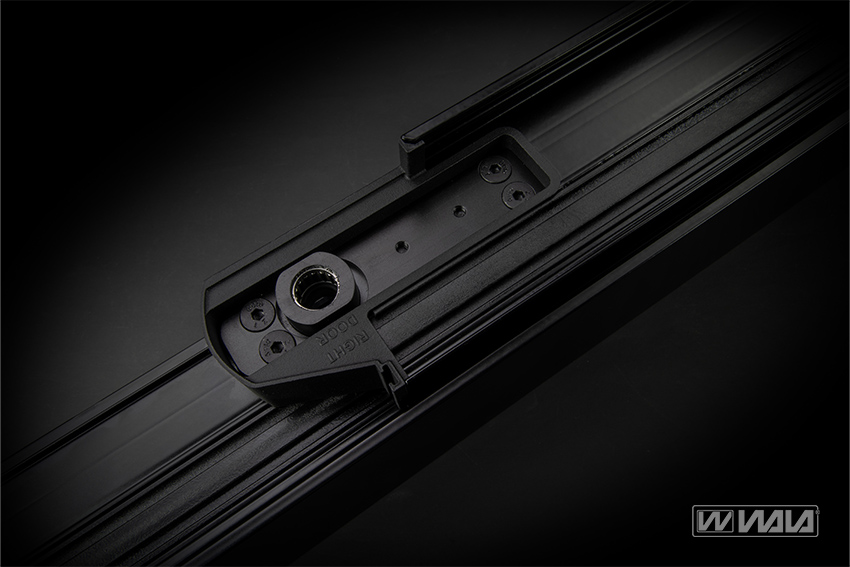

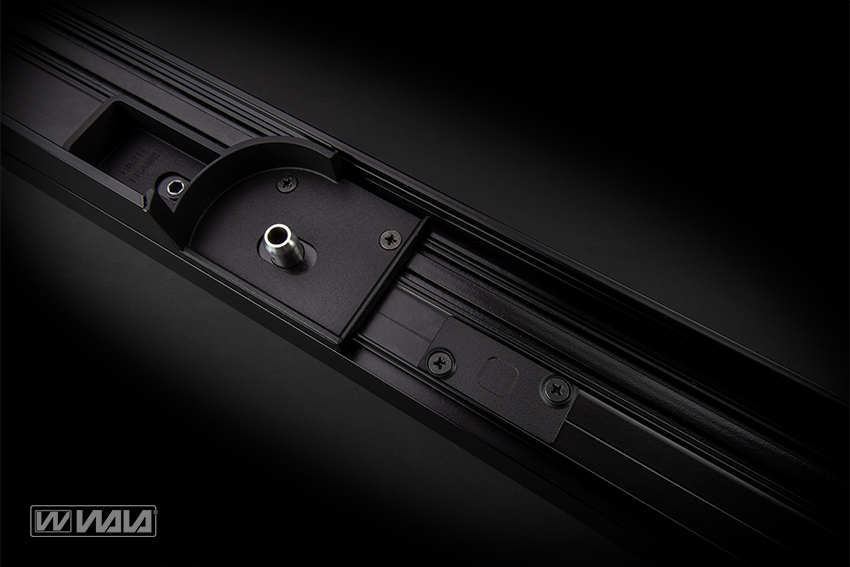

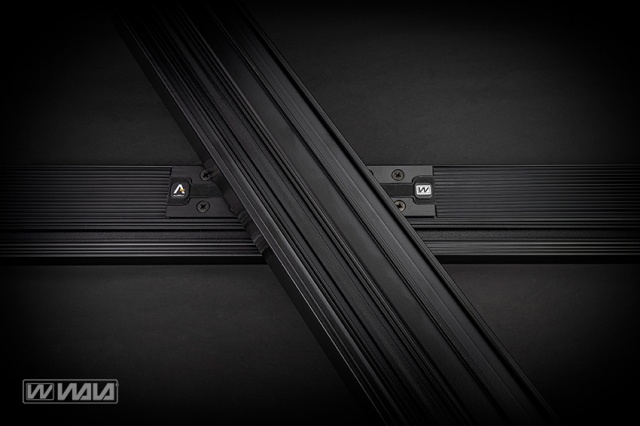

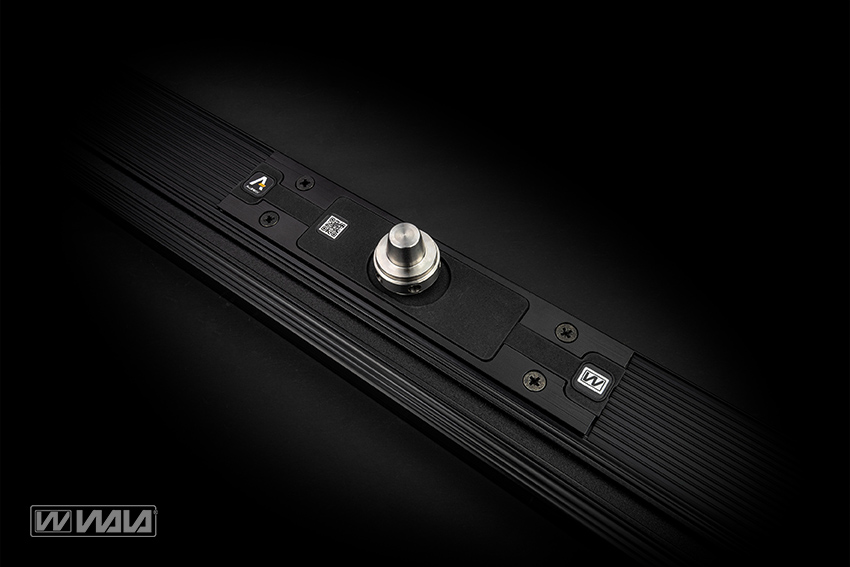

The way the hinges open gives the impression of levitation, which makes even the largest doors look light and unique. Currently, the design of the PIVOT hinge allows large doors up to 3400 high and 2000 wide to be opened without any problems. The hinges are fitted with a cable entry thanks to which electrical cables max. 7.5 mm in diameter can be passed through the pin. Thus, they can be used to connect access control systems installed in the handle or on the door, handle illumination as well as cables for door heating. Our PIVOT hinges intended for the ALUPROF MB-86N system are its integral part, so no floor milling is required and the bottom part of the hinge easily fits into the threshold. The materials covering the upstands and milling points are matched to the system. This gives the whole system an elegant and coherent appearance that inspires admiration.

A shifted centre of gravity that increases the load-bearing capacity and allows a leaf weighing up to 500 kg to be held, gives architects enormous flexibility in designing and arranging spacious areas. PIVOT hinges are the latest trend meeting the requirements of the most demanding customers who are looking for original, prestigious solutions. They combine functionality, aesthetics and reliability, making them the ideal choice for almost any project.

PIVOT

BLACK

AVAILABLE COLOURS

CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.

PIVOT



ADJUSTMENT HINGES:
