 WU-1R CONCEALED HINGE FOR  DOOR


MAXIMUM LOAD CAPACITY: 120 kg
POSSIBILITY OF USE IN FIRE DOOR: no
OTHER:

  • independent and smooth adjustment in 3 directions
  • easy and fast assembly
  • certificated product





CHECK CALCULATOR

WU-1R HINGE CLASSIFICATION EN 1935:2002 + EN 1935:2002/AC:2003
for use in emergency exit doors

4 7 6 0 1 4 1 13













 service classes (1-4)
 durability (3,4,7)
 weight of test door (0-7)
 fire resistance (0,1)
 security (1)
 corrosion resistance (0-4)
 intrusion protection (0,1)
 hinge class (1-14)





WU-1R ELECTRO CONCEALED SINGLE-ROW HINGE



INFORMATION:

  • no visible, unsightly cable entry,
  • possibility of connecting cables after installing the hinge thanks to inspection holes (so-called revision),
  • ensuring continuity of installation connection, elimination of micro-contacts.

CABLE:

  • Helukabel 18089 tronic 6x0,5


The WU-1RE hinge with cable entry is not a load-bearing element (not subject to calculation acc. to the weight table).





WU-1R, WU-1RE concealed hinge

RAL 7016

AVAILABLE COLOURS

PLASTIC ELEMENTS

CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.

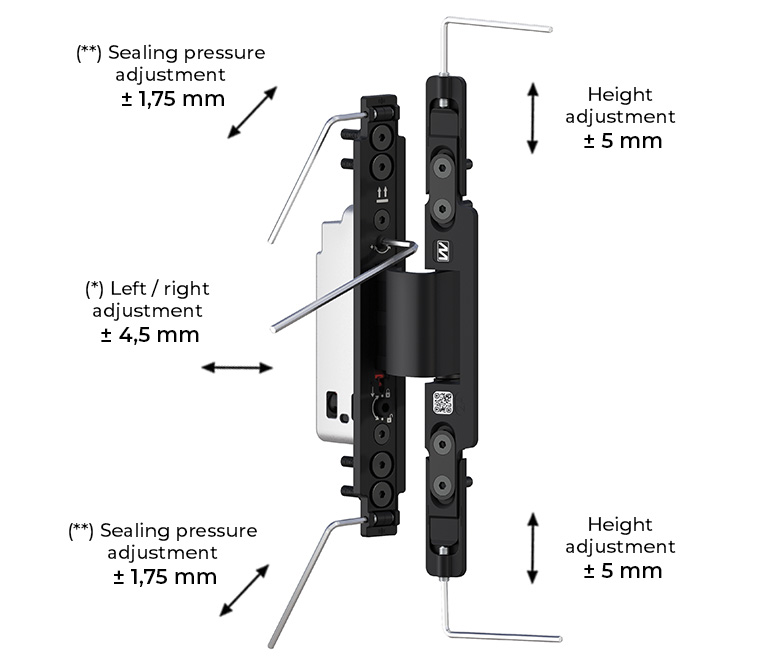

WU-1R, WU-1RE concealed hinge



Doorstop must be used eg WALA WST





(*) - adjustment on nefative direction can be very limited depending on the aluminium system.

(**) - the actual range may be smaller due to the sealing gap depending on the aluminum system





Frame profile processing Leaf profile processing
